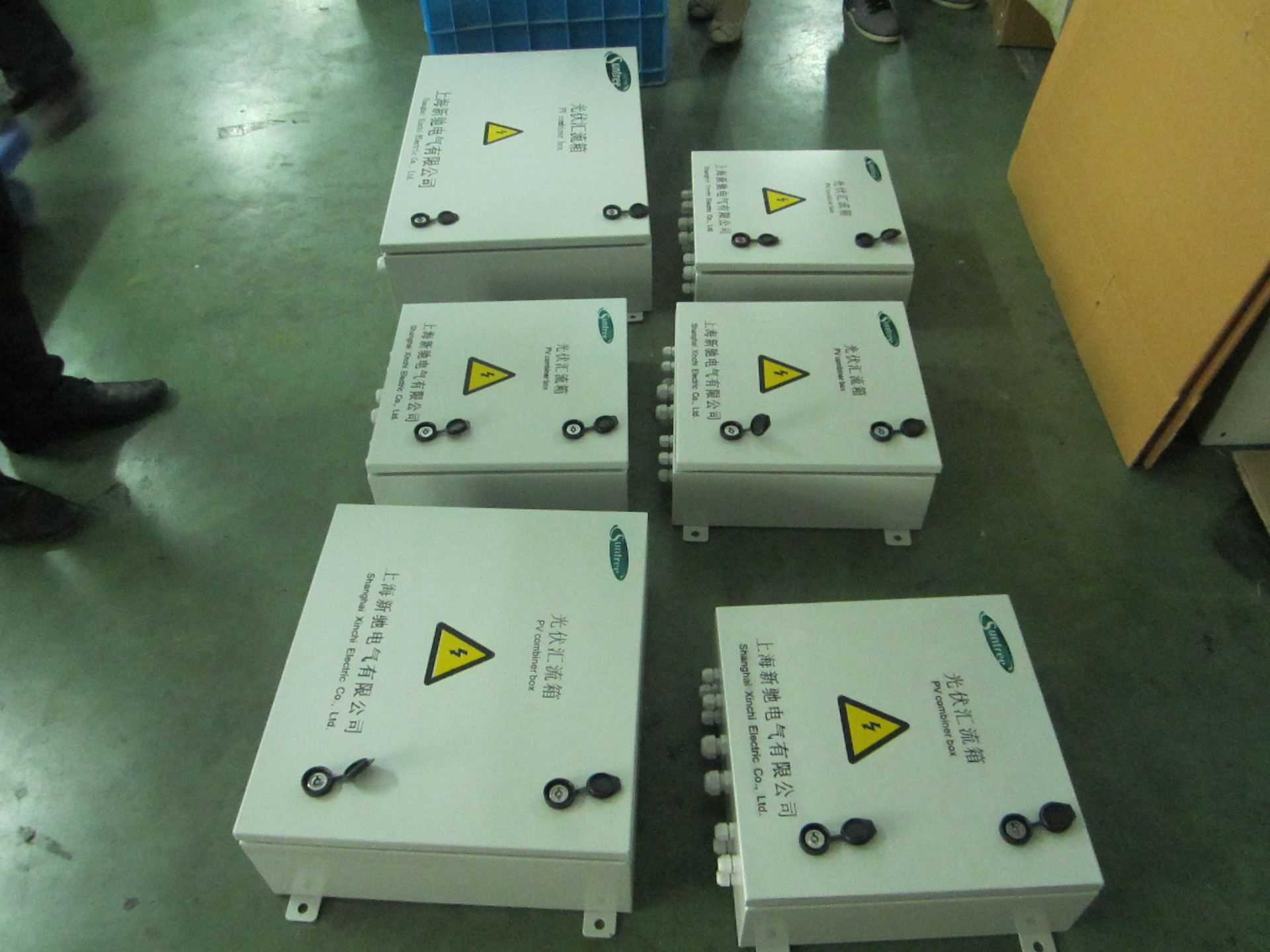

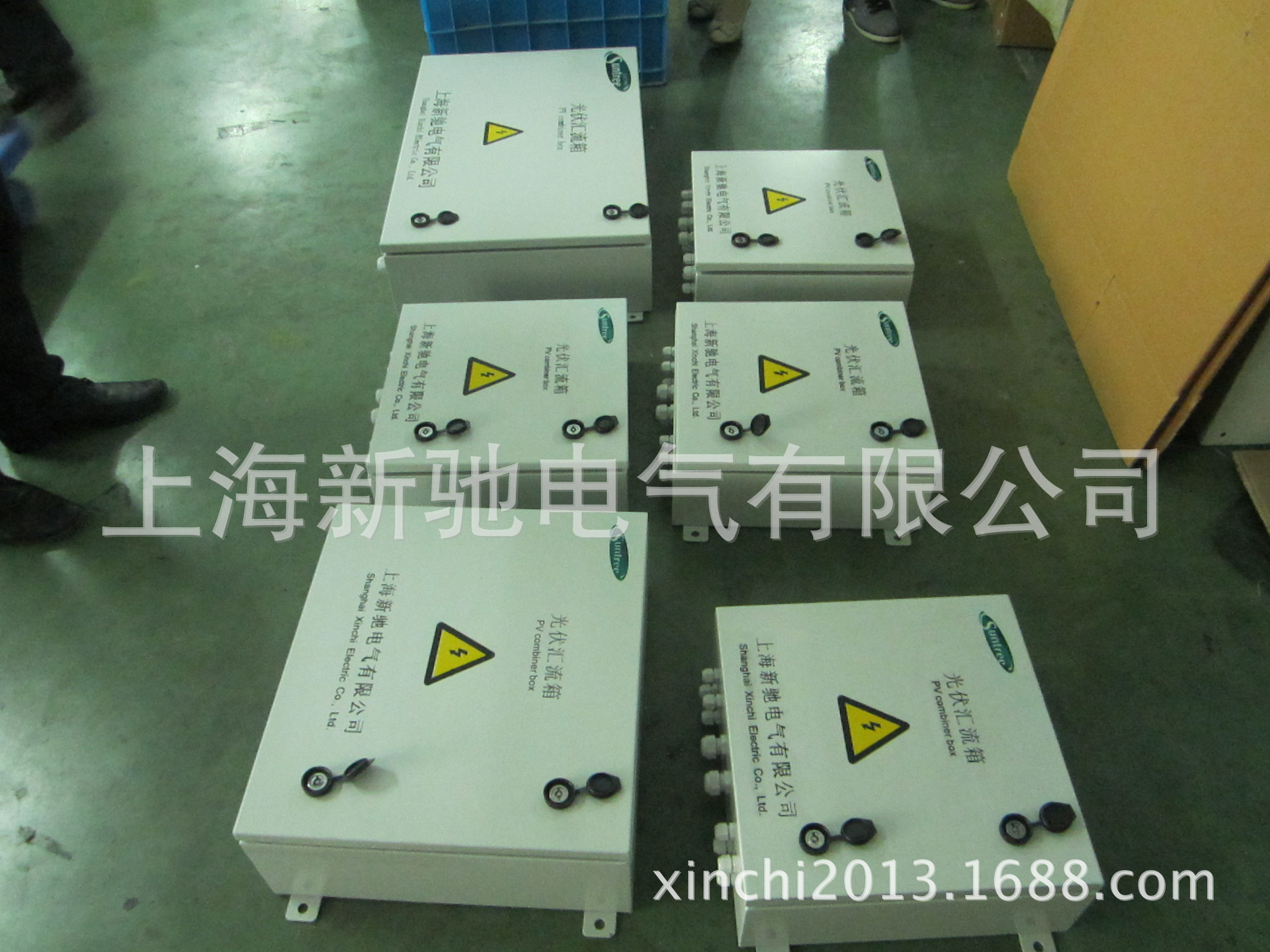

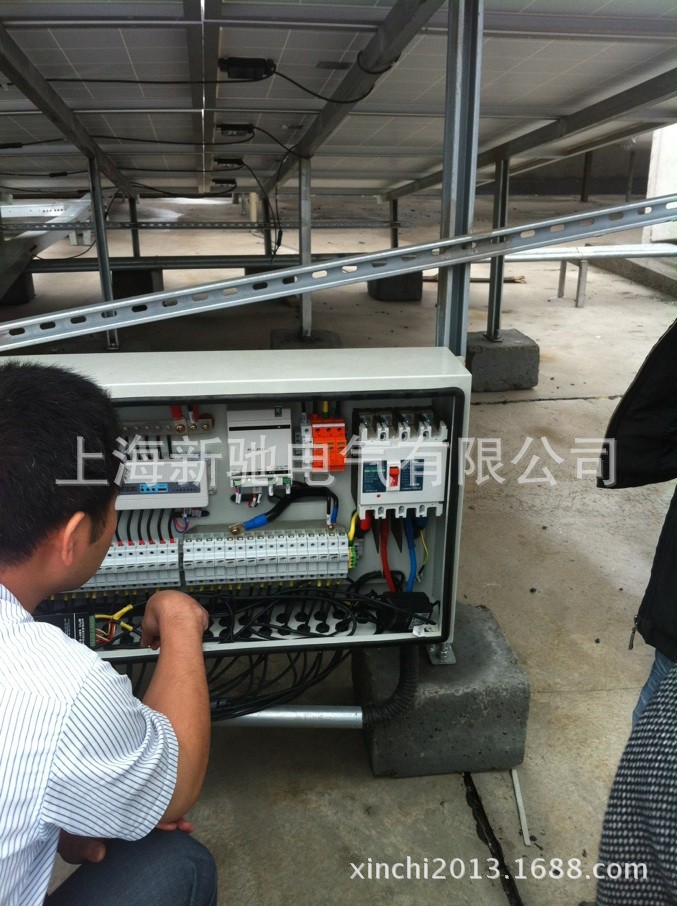

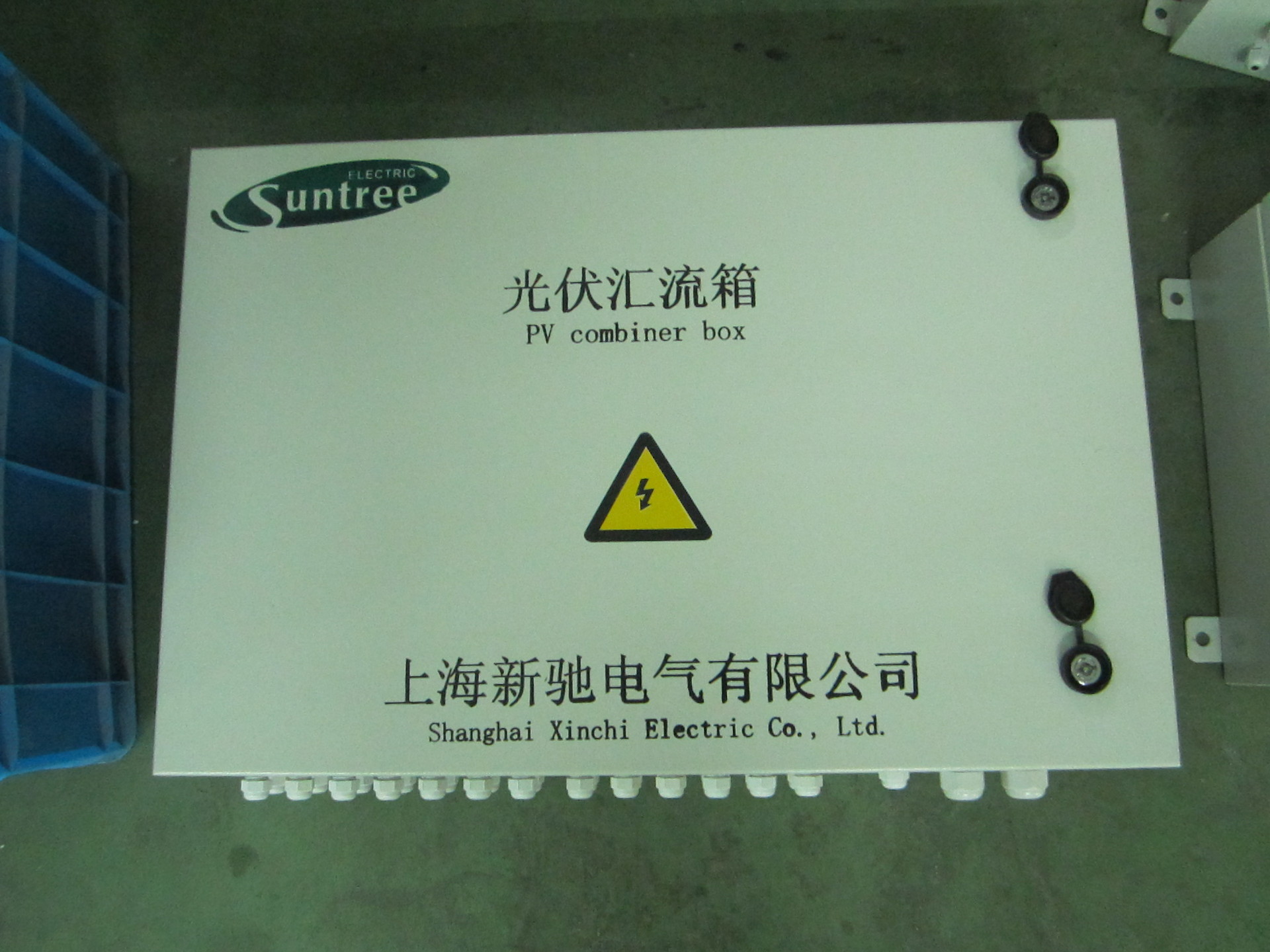

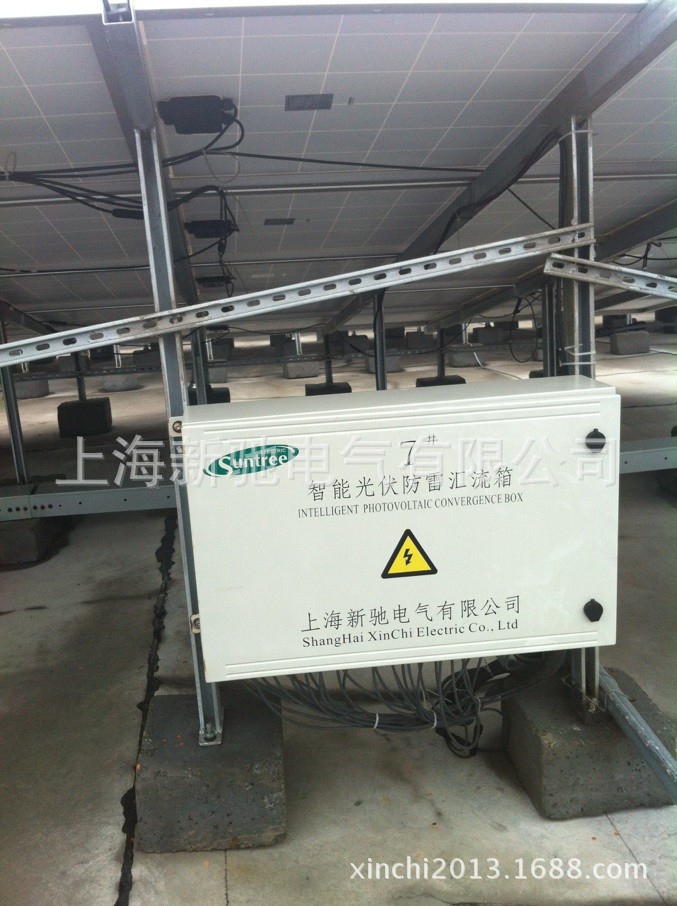

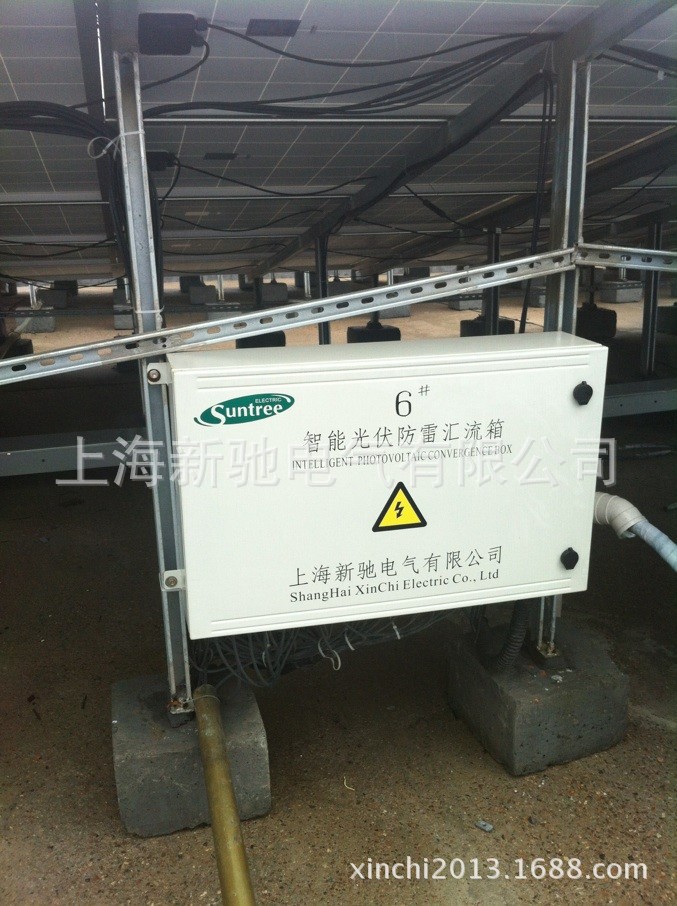

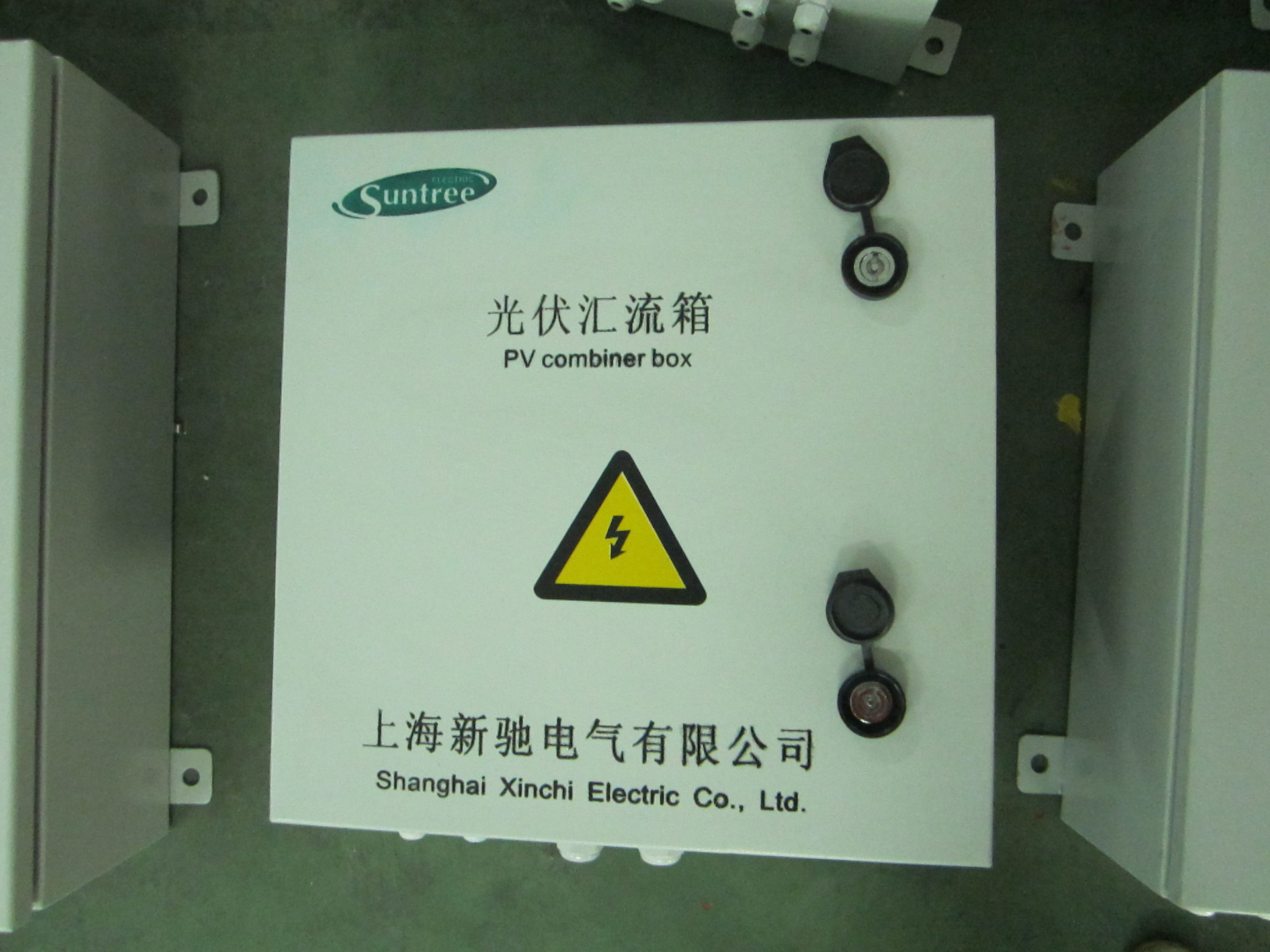

防雷箱 光伏直流防雷箱 防雷汇流箱 16回路

产品型号

Model

SHLX-PV16

SHLX-PV12

SHLX-PV10

SHLX-PV8

输入路数

Input channel number

13~16

11~12

9~10

8路以下

Less than 8

**输入电压

Max. input voltage

1000Vdc

每路输入电流

Input current of each channel

0~20A

**输出电流

Max. output current

160A

120A

100A

80A以下

Less than 80A

输入防水端子大小

Size of the input waterproof terminal

PG9/PG11

输出防水端子大小

Size of the output waterproof terminal

PG21~PG29

PG19~PG25

PG16~PG21

PG13.5~PG19

监测模块

Monitoring module

检测每路电流、母线电压、断路器状态、防雷器状态、箱体温度

Detect current of each channel, bus voltage, status of circuit breaker and lightning protector, box temperature

通信方式/协议

Communication mode/protocol

RS485总线/标准的MODBUS-RTU协议

RS485 bus/standard MODBUS-RTU protocol

防反功能

Prevent-reverse function

配置模块化封装防反二极管（选配）

Can be equipped with modularized and encapsulated prevent-reverse diode (optional)

温湿度

Temperature and humidity

工作温度：-40~+85℃，湿度95%，无凝露、无腐蚀性气体场所

Operating temperature: -40~+85℃, humidity 95%, places free of dew or corrosive gas.

海拔Altitude

≤4000m

监测模块功耗

Power consumption of monitoring module

工作时≤8W

Working hours≤8W

辅助电源

Auxiliary power supply

辅助电源：AC85V~265V/DC24V(±10%)/DC200V~1000V

Auxiliary power supply: AC85V~265V/DC24V(±10%)/DC200V~1000V

箱体材质

Box material

热镀锌钢板/不锈钢/冷轧钢板/工程塑料

Hot galvanized steel/stainless steel/cold rolled sheet/engineering plastics

防护等级

Ingress protection

IP65

体积（宽×高×深）

Volume (W×H×D)

800mm*500mm*180mm

720mm*500mm*180mm

690mm*500mm*180mm

650mm*500mm*180mm

重量Weight

10～35kg

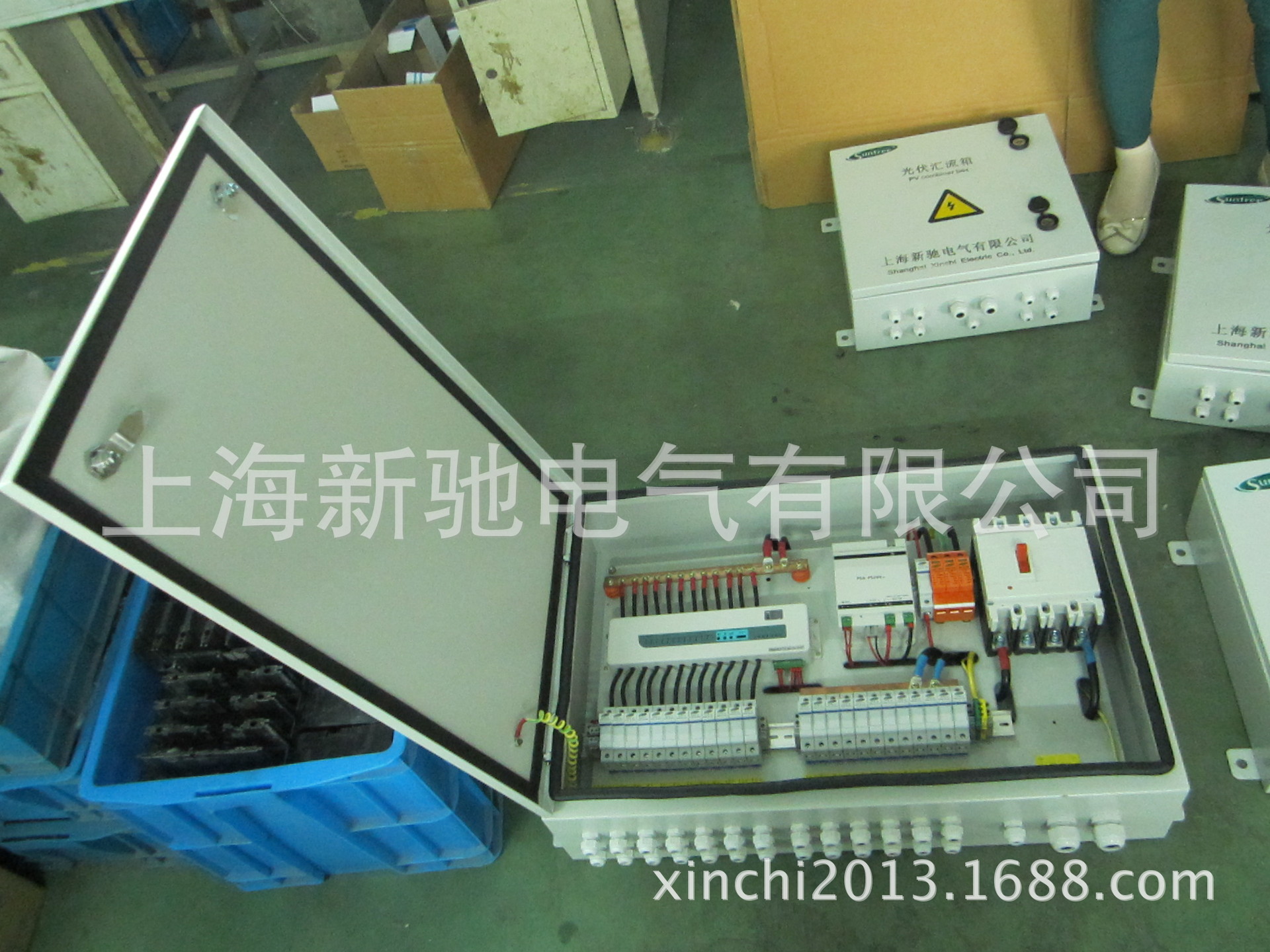

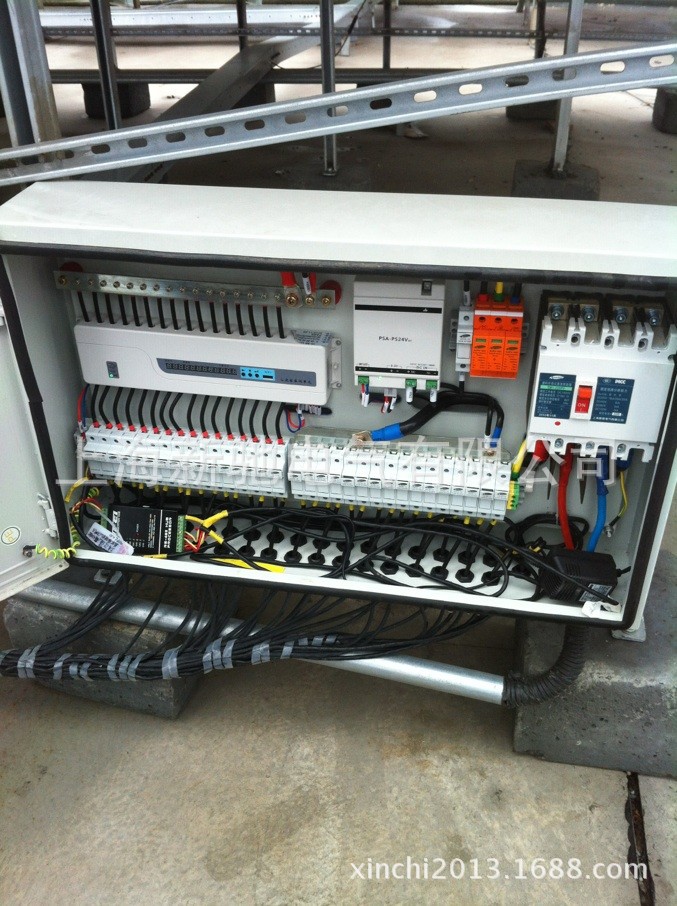

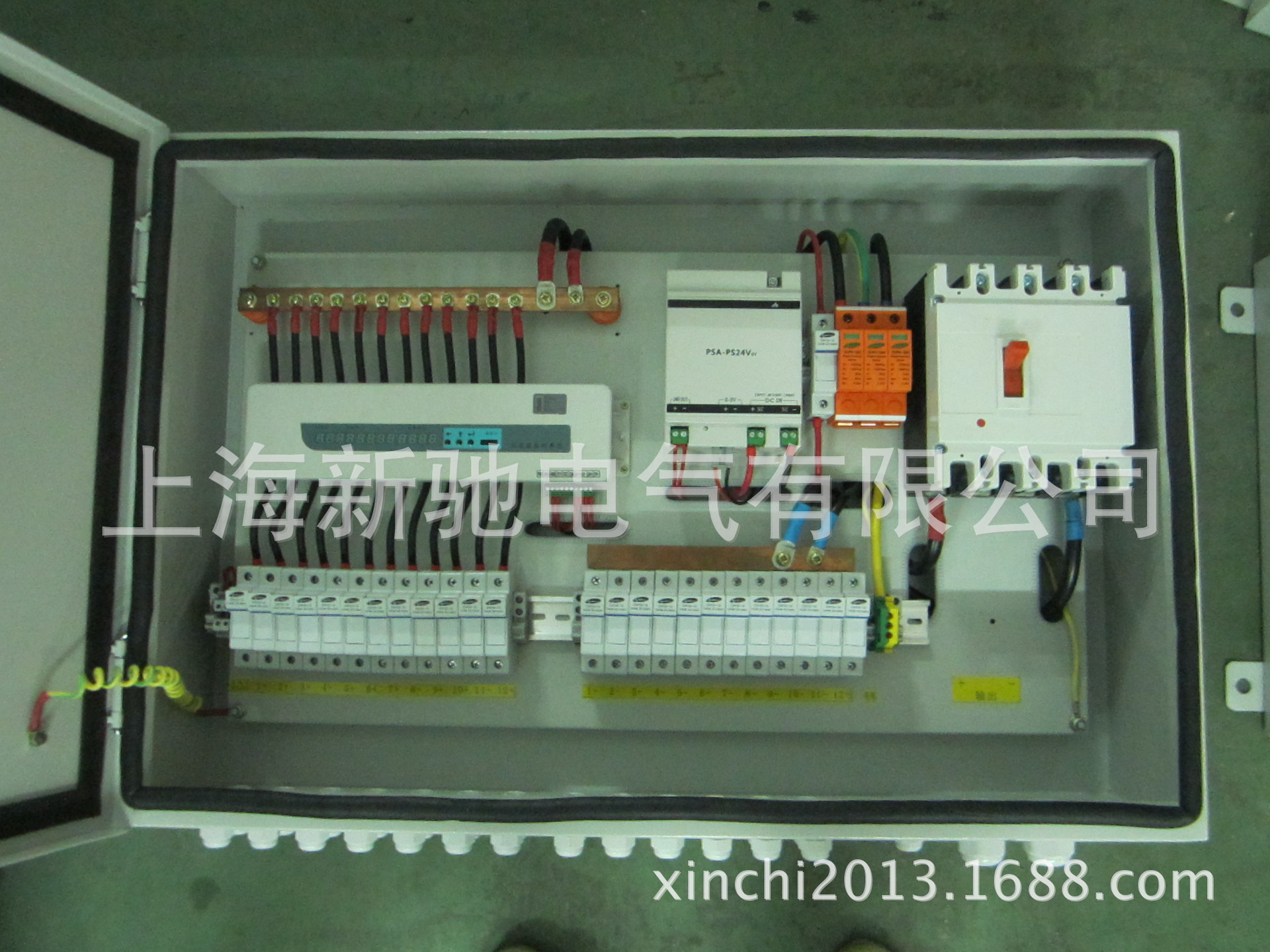

部件编号Parts No.

说  明Description

1

汇流监测单元Combiner monitoring unit

2

直流正极汇流输入DC positive pole combined input

3

直流负极汇流入DC negative pole combined input

4

RS485

5

正极汇流排Anode busbar

6

接地端子Ground terminal

7

防雷器Lightning protector

8

直流断路器DC circuit breaker

9

自供电电源Self-contained power supply

10

防水端子Waterproof termina
